LVB-20-P Liquid flow meter [5.0 .. 85 l/min]
Low-Flow Vortex Flowmeter for Liquids
- Fast response
- Frequency output (unfiltered)
- Compact, light-weight, cost-effective construction
- No moving parts; maintenance free
- Low pressure drop
- IP65 construction

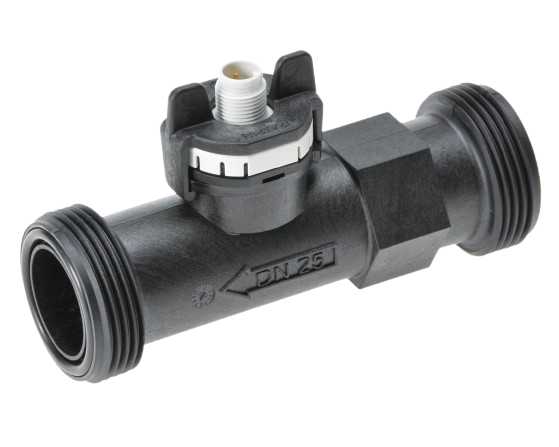

![LVB-20-P Liquid flow meter [5.0 .. 85 l/min]](https://www.massflow-online.com/getattachment/70791f98-e367-455f-a495-1047a55348d9/LVB-Side.jpg?width=1024&hash=%2bAL0KRC3C78%2foUrsCP57lGOIkHRHRPY53ykHN6G57og%3d)
![LVB-20-P Liquid flow meter [5.0 .. 85 l/min]](https://www.massflow-online.com/getattachment/edb86814-a197-404a-87e2-8d45832a9462/LVB-Top.jpg?width=1024&hash=%2bAL0KRC3C78%2foUrsCP57lGOIkHRHRPY53ykHN6G57og%3d)
![LVB-20-P Liquid flow meter [5.0 .. 85 l/min]](https://www.massflow-online.com/getattachment/70791f98-e367-455f-a495-1047a55348d9/LVB-Side.jpg?maxsidesize=90&hash=NqQb6bpL0ayLPvVJaRjgWGPkH92mr7VPqyPbENoB0JU%3d)
![LVB-20-P Liquid flow meter [5.0 .. 85 l/min]](https://www.massflow-online.com/getattachment/edb86814-a197-404a-87e2-8d45832a9462/LVB-Top.jpg?maxsidesize=90&hash=NqQb6bpL0ayLPvVJaRjgWGPkH92mr7VPqyPbENoB0JU%3d)
| Model | Min | Max |
|---|---|---|
| LVB-20-P | 5.0 l/min | 85 l/min |
Features of LVB-20-P Liquid flow meter [5.0 .. 85 l/min]
- Makes liquid flows visible by Frequency output (unfiltered) output
- No moving parts makes it:
- impervious to deposits
- maintenance free - Low pressure drop
- Mounting in any position
- Wide flow ranges
- Fast response
- Suitable for dirty water (circulating, well or waste water)
- Sustainable product design
- Low power consumption
- Lightweight and compact
Technical specifications
Measurement / control system
Flow range
5.0 ..
85
l/min
Accuracy
at >=50%FS <2%RD
at <50%FS <1%FS
at <50%FS <1%FS
Operating pressure
(for lifetime) 12 bar(a) at +40°C
(for lifetime) 6 bar(a) at +100°C
(for 600 hours) 4 bar(a) at +125°C
(for 2 hours) 4 bar(a) at +140°C
(for lifetime) 6 bar(a) at +100°C
(for 600 hours) 4 bar(a) at +125°C
(for 2 hours) 4 bar(a) at +140°C
Medium
Water and water like liquids.
(cooling, well, waste, pure, drinking, heating and tap water)
This product is NOT compatible with flammable, corrosive or toxic liquids.
(cooling, well, waste, pure, drinking, heating and tap water)
This product is NOT compatible with flammable, corrosive or toxic liquids.
Medium Temperature
<+125°C
Rangeability
Up to 1:20
Response time (sensor)
Signal delay: < 100 ms
Response time: < 5 ms
Response time: < 5 ms
Operating temperature
Ambient: -15 ... +85ºC
Storage: -30 ... +85ºC
Storage: -30 ... +85ºC
Mechanical parts
Material (wetted parts)
Body: PA6T/6I (40% GF)
Sensor paddle: ETFE
Seals: EPDM
Sensor paddle: ETFE
Seals: EPDM
Test pressure
18 bar(a) at +40°C
Process connections
G1
Weight
0.10
kg
Ingress protection
IP65
Electrical properties
Power supply
4.75..33Vdc
Load
<1mA
Max. power consumption
<2mA
Electrical protection measures
Short circuit, reverse voltage and external voltage protected within the admissible supply voltage
Output
Frequency output (unfiltered)
Drinking water approval
KTW / W270 / WRAS / ACS
EMC
EN 61326-2-3
Electrical connection
M12 x 1
Product details
Downloads
Brochures
Manuals
Declaration of Conformity
Stepfile
Applications
The fields of application for this vortex liquid flow meter are diverse:
- Cooling water monitor
- Deionized water (RO/DI skids)
- Ultra pure water distribution (medicare, biotech, semiconductor, pharmaceutical)
- Drinking water
