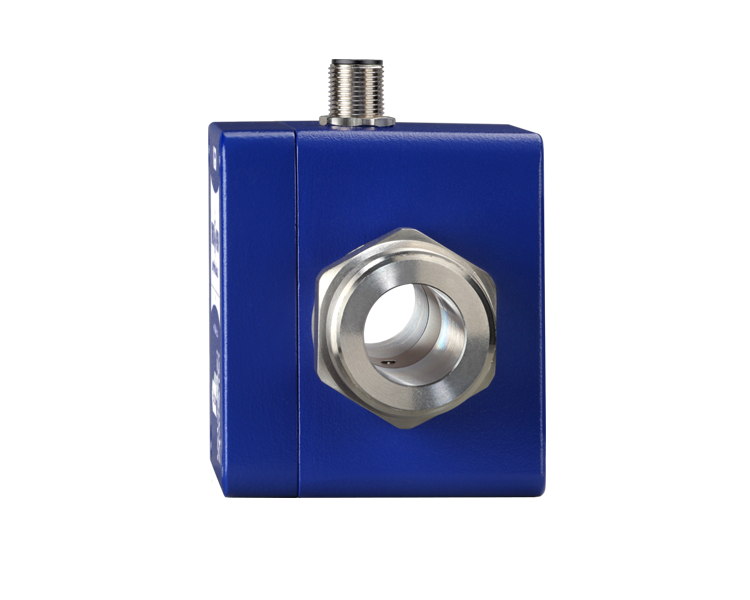

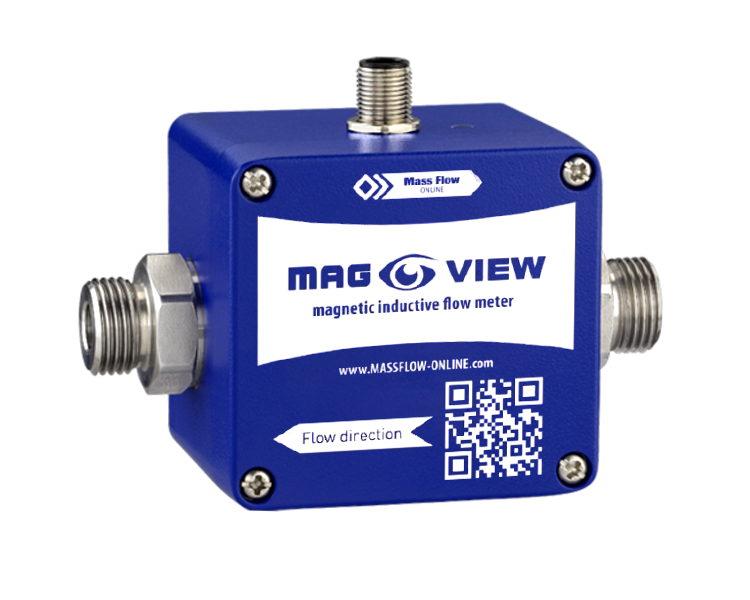

MVM-030-PA Magnetic Flow Meter
MVM-030-PA
Low-Flow Magnetic Inductive Flow meters for water-like liquids
- Pulse and Analog output (4..20 mA)
- Compact, weatherproof (IP65) design
- No moving parts (no mechanical wear)
- Interference free operation
- Independence to inlet/outlet pipework
- Fast response
- Free pipe cross section: low ΔP, insensitive to contamination
Water like liquids
Frequency & 4..20mA
Flow ranges

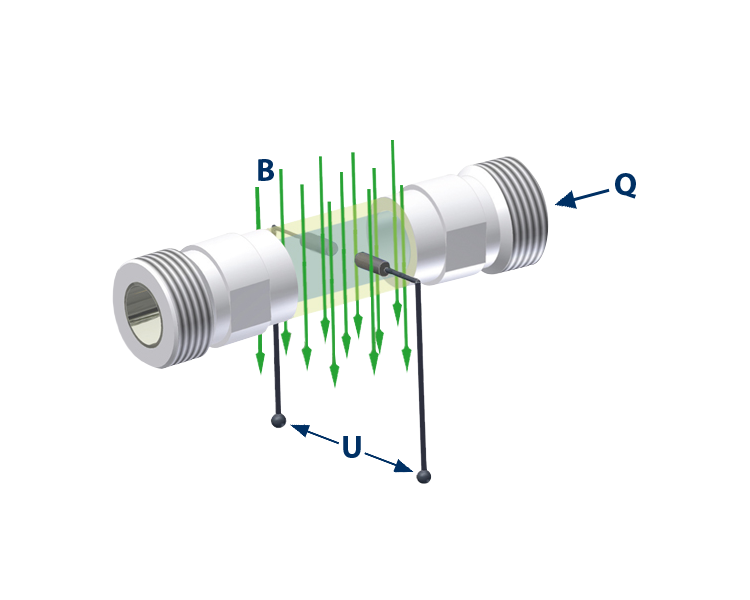

This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 0.1 .. 30 lpm.
| Model | Min | Max | output signal starts |
|---|---|---|---|
| MVM-030-PA | 0.1 l/min | 30 l/min | ~ 0.1 l/min |
Scope of delivery
- Magnetic Flow Meter
- Calibration certificate
- Packing box
- MAG-VIEW Manual
- (optional) instrument cable
Features of MVM-030-PA Magnetic Flow Meter
- Makes liquid flows visible by
- Blinking LED (red/green)
- Frequency output and Analog output (4..20 mA)
- No mechanical wear
- No moving parts
- Ease of mounting and operation
- Mounting in any position
- Free pipe cross section
- No additional pressure drop
- Fast response (<500 ms)
- Insensitive with contaminated liquids
- Ideal solution for interference free operation combined with a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines
Technical specifications
Measurement / control system
Flow range
0.1..
30
l/min
Accuracy
±0.7 % of reading ±0.3 % of range
Reproducibility
1%
Pressure rating
PN16
Nominal diameter
DN 7
Flow / alarm indication
Green LED: flow proportional flashing
Signal output starting from
~
0.1
l/min
Medium
Water and other conductive liquids
(minimum conductivity of 50 μS/cm)
(minimum conductivity of 50 μS/cm)
Medium Temperature
-20...
90
°C
Rangeability
1:60
Response time (sensor)
< 500 ms
Mechanical parts
Material (wetted parts)
Housing: Aluminium pressure diecasted
Electrodes: Stainless Steel 1.4571
Process connections: Stainless Steel 1.4571
Measuring pipe: PEEK-GF30
Gasket: EPDM
Electrodes: Stainless Steel 1.4571
Process connections: Stainless Steel 1.4571
Measuring pipe: PEEK-GF30
Gasket: EPDM
Process connections
G1/2'' BSP male thread
Ingress protection
IP65 and IP67 with MFO.CB.25
Electrical properties
Power supply
12...
24
Vdc
±10%
Max. power consumption
max. 150 mA
Analog output
4..20 mA, Signal current corresponds to flow rate of 0…30 l/min
Frequency output
Pulse rate / K-factor : 1000 pulses/l
Resolution : 1,0 ml/pulse
Signal shape : Push-Pull
Resolution : 1,0 ml/pulse
Signal shape : Push-Pull
Signal shape
Square wave signal, pulse duty ratio 50:50, Push-Pull
Signal current
max. 100 mA, current limited
Pin assignment
PIN 1: +UB
PIN 2: analog output 4..20mA
PIN 3: GND
PIN 4: frequency output
PIN 5: do not connect
PIN 2: analog output 4..20mA
PIN 3: GND
PIN 4: frequency output
PIN 5: do not connect
Electrical connection
5-pin-plug M12x1
Product details
Downloads
Declaration of Conformity
Stepfile
Applications
The fields of application for this magnetic flow meter are diverse:
- Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
- Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm
- Water distribution
- Chemical feed
