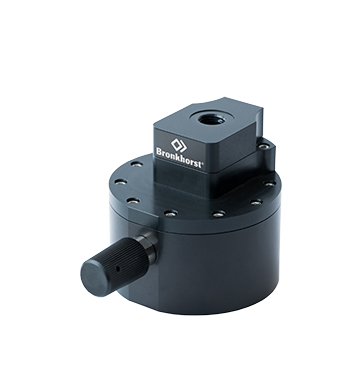

FC-002 Constant-Flow Controller
  • Gas flow up to 7 ln/min
  • Liquid flow up to 400 ml/min
  • Operating pressure up to 10 bar(g)
  • IP65 ingress protection
HR
Valve
0 .. 70°C
FC-002 Constant-Flow Controller

FC-002 Constant-Flow Controller

  • Gas flow up to 7 ln/min
  • Liquid flow up to 400 ml/min
  • Operating pressure up to 10 bar(g)
  • IP65 ingress protection
Online price starting with:
$546.00
Temporarily unavailable | Restocking in progress
Place your order now, and we'll ship it to you as soon as it's back in stock
You can still continue your order but the desired quantity is not in stock which is 0 pieces. The new lead time will be provided upon order placement
There are only 0 products in stock. Please adjust the quantity if you wish to proceed with your order.


GasCapacity
Air0.02 .. 7 ln/min
N2  Nitrogen0.02 .. 7 ln/min
O2 Oxygen
0.02 .. 6.5 ln/min
CO Carbon Monoxide0.02 .. 7 ln/min
Argon0.04 .. 5.5 ln/min
CO2 Carbon Dioxide0.02 .. 5.5 ln/min
CH4 Methane
0.01 .. 9 ln/min


GasCapacity
C3H8 Propane
0.01 .. 5.5 ln/min
N2O Nitrous Oxide
0.02 .. 5.5 ln/min
C4H10  Butane 0.01 .. 4.5 ln/min
LiquidCapacity
Water4 .. 400 ml/min

Features of FC-002 Constant-Flow Controller

  • Compact design
  • Ruggedized aluminium housing
  • No power required
  • Leak-free valve
  • Valve pin o-ring guarantees positive shut-off without stem damage
  • Self-lubricating orifice liner assures long life
  • Valve knob included for easy adjustment



Scope of delivery

  • Constant-flow controller
  • Packing box
  • FLOW-CONTROL Leaflet
  • (optional) fittings

Technical specifications

Measurement / control system

Flow range
based on Air 0.02 .. 7 ln/min
based on Water 4 .. 400 ml/min
Temperature rating
0 .. 70°C / 32 .. 158°F
Operating pressure
0 .. 10 bar(g) / 0 .. 150 psi(g)
Rangeability
up to 1:100
Pressure sensitivity
Less than 0,5-1% Rd/bar
Technical specifications are based on Air at maximum FS

Mechanical parts

Material (wetted parts)
Body: Aluminium, Viton® (FPM), Stainless Steel
Needle valve: Brass, SS316, Fluorisint®, Bruna N
Membrane: Fiber-reinformed Nitrile
Test pressure
21 bar(a) / 300 psi(a)
Min. ΔP
1 bar(d)
Max. ΔP
7 bar(d)
Process connections
G 1/4" BSPP female
Closing
Clockwise
Ingress protection
IP65

Electrical properties

Product details

Dimensional drawing FC-00X
Dimensional drawing FC-00X

Downloads

Brochures

Stepfile

Applications

The fields of application for FLOW-CONTROL are diverse:

  • Constant flow control of gases
  • Constant flow control of liquids
  • Process control
  • Gas/liquid sampling
  • Inert gas/liquid blanketing
  • Pressure regulator of gas and liquids
  • Maintaining constant flow rate
